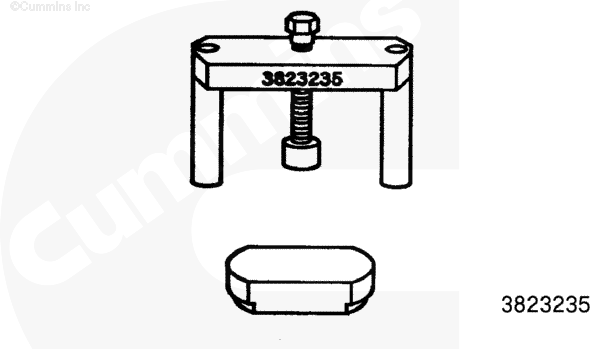

Used to remove the main bearing caps from the cylinder block.
Tool Number
ST-1228
Camshaft Bushing Drive Set
Used to replace cylinder block camshaft bushings.
Tool Number
4919704

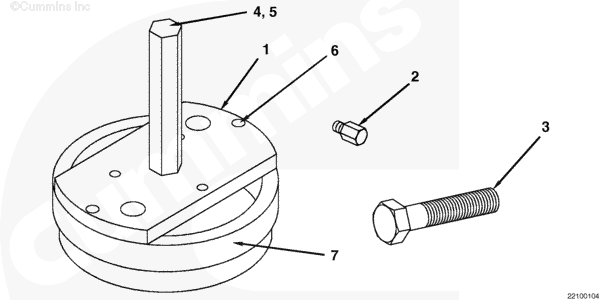

Oil Seal Puller/Installation
Used to pull or install the front crankshaft seals with and/or without a wear sleeve. Includes: Top plate, Part Number ST-1259-1, and seal puller screw, Part Number ST1259-6.
Tool Number
3375432

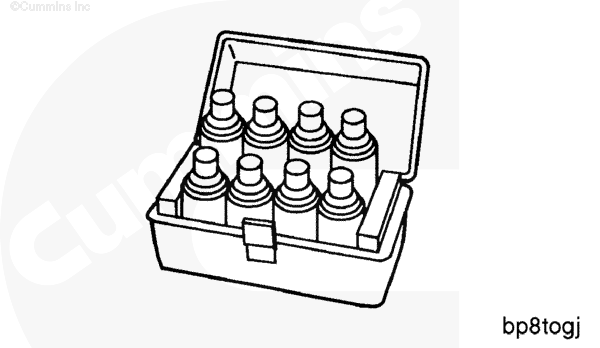

Crack Detection Kit
Used to inspect components for cracks.

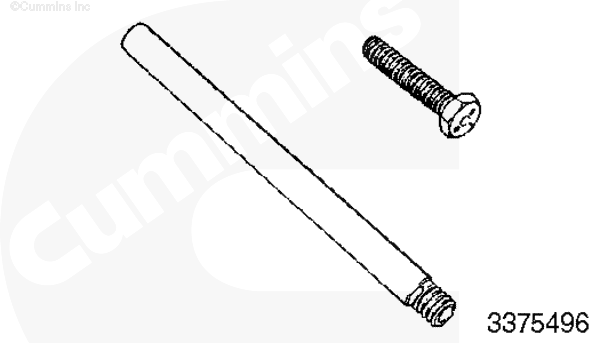

Tool Number
3375496
Oil Seal Puller Drill Pilots (Front Seal)
Used to drill into the front oil seat to provide a pilot hole for the puller screws. Use two Number 31 (0.120) drills.
Tool Number
4919705
Crankshaft Oil Seal Installer Kit (Rear Crankshaft Seal)
Used to align the rear cover plate and install the rear crankshaft seals with or without wear sleeves.
Tool Number
3375601

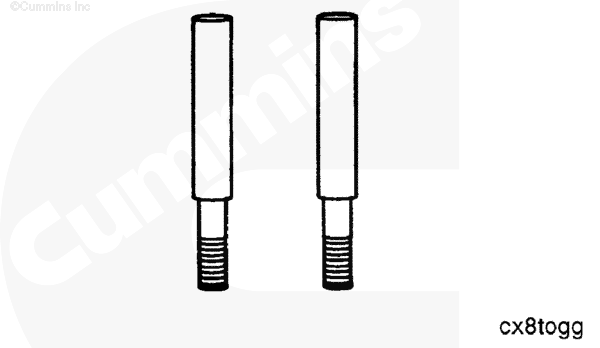

Connecting Rod Guide Pins (Two)
Used to protect the crankshaft journal by guiding the connecting rod during installation or removal.
Tool Number
3375629

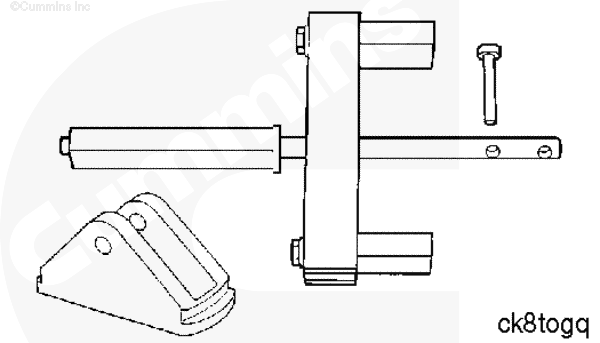

Universal Cylinder Liner Puller
Used to remove the cylinder liners from all current engine series.
Tool Number
3375861

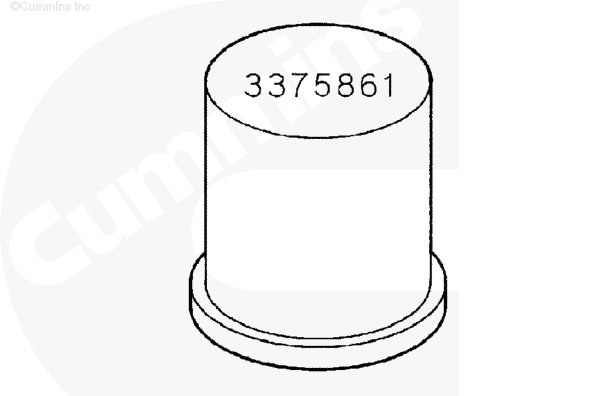

Camshaft Bushing Driver
Used to remove camshaft bushings.
Tool Number
3376208

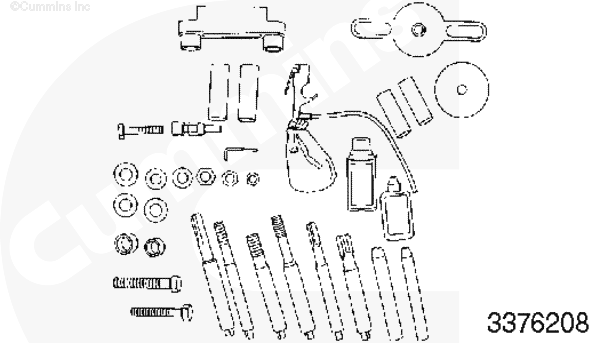

Capscrew Thread Salvage Tool Kit
Used to salvage cylinder blocks with damaged cylinder head capscrew threads.
Tool Number
3823231

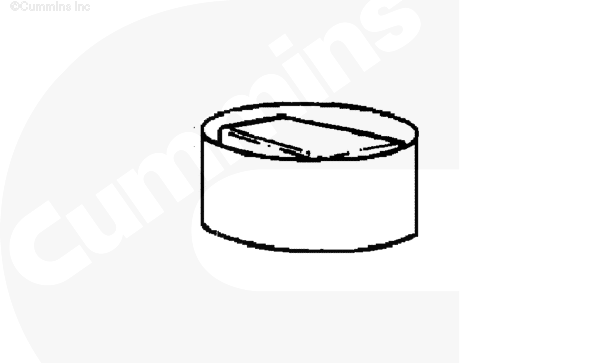

Chip Control Plug
Used to prevent contamination of the engine block during counterbore repairs.
Tool Number
3823495

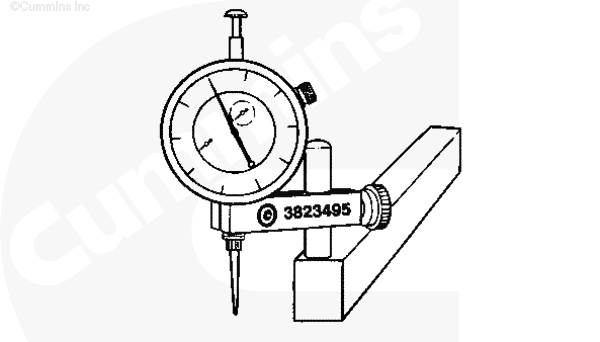

Depth Gauge
Used to measure the counterbore ledge.
Tool Number
3823615
Liner Installation Tool
Used to install cylinder liners into the block.
Tool Number
3823717

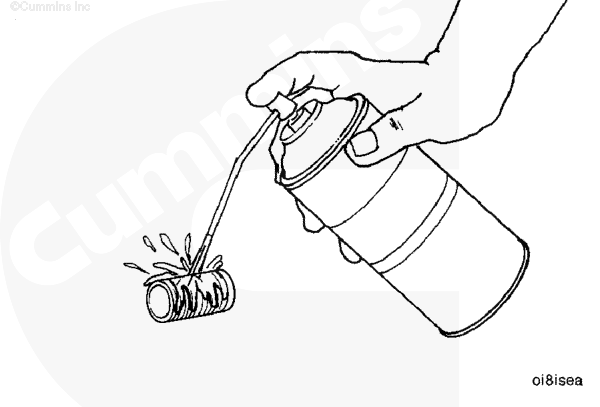

Safety Solvent
Used to clean machine surfaces prior to the installation of thread repair inserts, coolant passage surfaces, and upper deck repair sleeves.
Tool Number
3823745

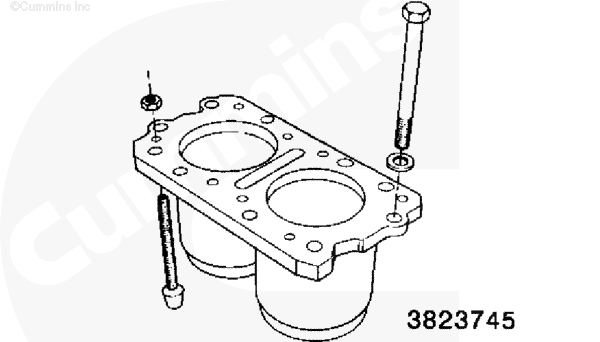

Cylinder Block Pressure Test Fixture
Used to check cylinder block counterbore leaks.

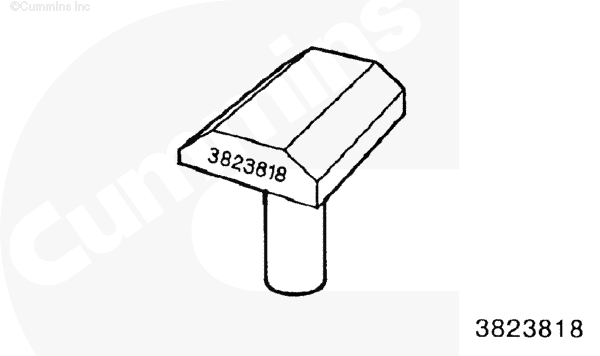

Tool Number
3823818
Main Bearing Roll-Out Tool
Used to remove and install main bearings.
Tool Number
3823871
Piston Ring Expander
Designed to install piston rings on the piston without damaging or distorting the rings.

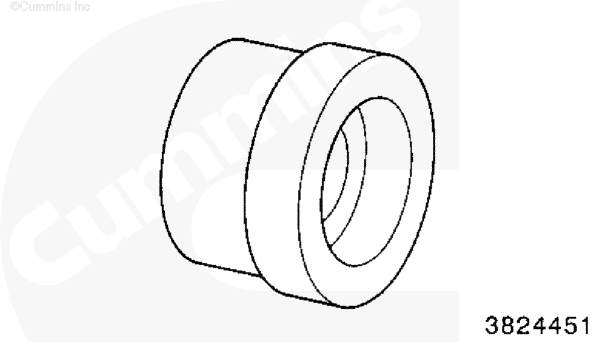

Tool Number
3824451
Accessory Drive Seal Installation Tool
Used to drive the accessory drive oil seal and wear sleeve into the gear cover while mounted.
Tool Number
3824520

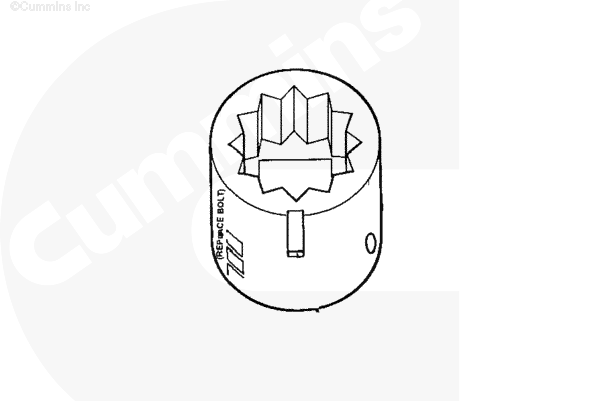

Marked Socket
Used to tighten the rod capscrews
Tool Number
3824703
Accessory Drive Bushing Removal and Installation Kit
Used to remove and replace accessory drive support bushings.
