Tool Number
ST-1138 |
Belt Tension Gauge
Used to check the belt tension on 11/16 to 7/8 inch width belt.
|
|
Tool Number
ST-1274 |
Belt Tension Gauge
Used to adjust or check the tension on 3/8 to 1/2 inch top width belt.
|
|
Tool Number
ST-1293 |
Belt Tension Gauge
Used to check the poly V rib belt.
|
|

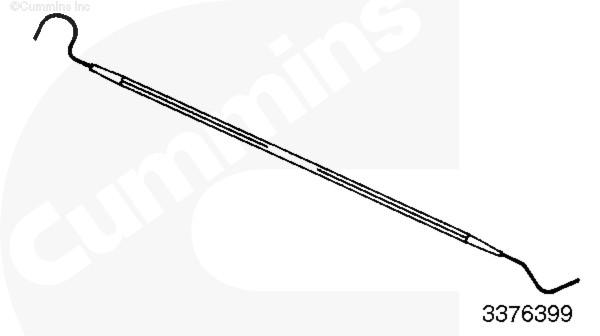

Tool Number
3376399 |
O-Ring Pick
Used to install and remove o-rings.
|
|
Tool Number
3377244 |
Quick Connect
1/8 NPT male brass Compuchek® fitting.
|
|
Tool Number
3377245 |
Quick Connect
9/16 straight threaded o-ring, brass, Compuchek® fitting.
|
|
Tool Number
ST-1225 |
Thermostat Seal Driver
Used to position the thermostat seal in the thermostat housing and cover.
|
|

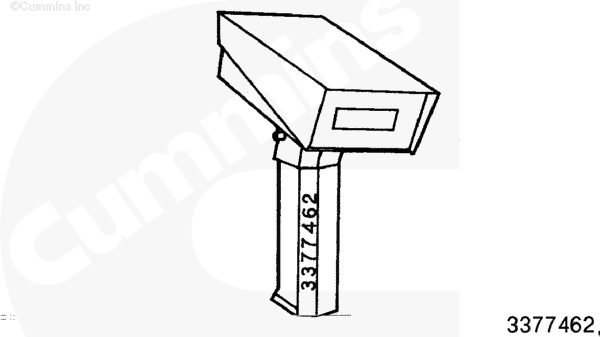

Tool Number
3377462 |
Optical Tachometer
Used to measure engine rpm.
|
|

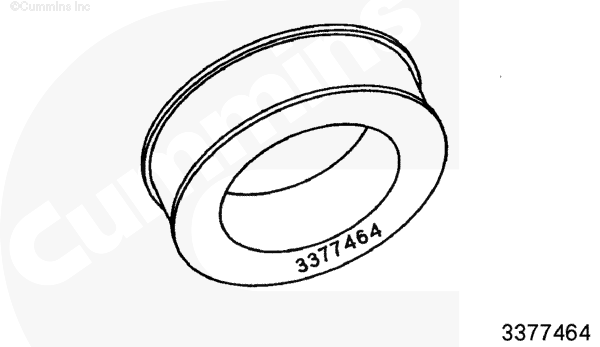

Tool Number
3377464 |
Reflective Tape (in optical tachometer, Part Number 3377462)
Used with optical tachometer, Part Number 3377462, to measure rpm.
|
|
Tool Number
3822666 |
Fluke Digital Temperature Measuring Instrument Kit
Used to measure temperatures for the fuel pump and injector test stands.
|
|

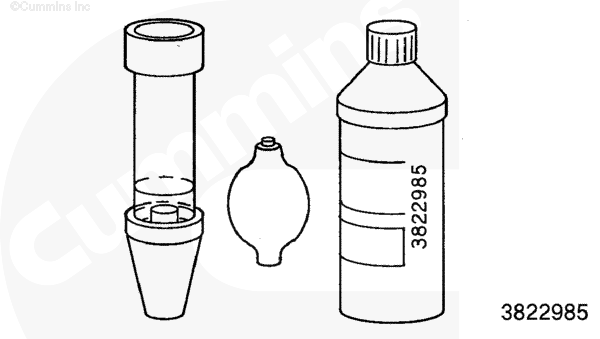

Tool Number
3822985 |
Combustion Gas Leak Test Kit
Includes: test fluid, Part Number 3822986, adapter, Part Number 3822987, and instructions, Part Number 3877612.
|
|
Tool Number
3822988 |
Thermocouple Extension Wire Kit
Includes: adapter, Part Number 3822989, thermocouple, Part Number 3822990, thermocouple wire assembly, Part Number 3822991, and bushing (1/8 NPT), Part Number 3822992.
|
|

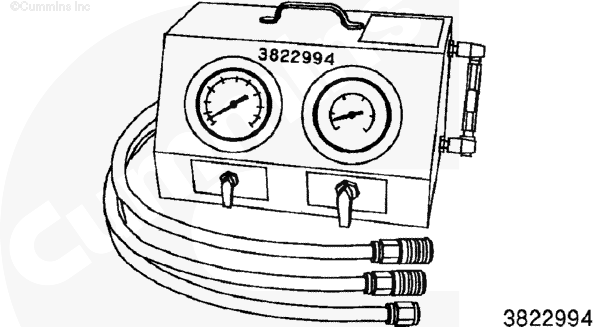

Tool Number
3822994 |
Coolant Pressure/Temperature/Flow Analyzer Kit
Includes: pressure gauge, Part Number 3822995, temperature gauge, Part Number 3822996, flow sight glass, Part Number 3822997, Compuchek® fitting (female), Part Number 3822998, and instructions, Part Number 3377613.
|
|

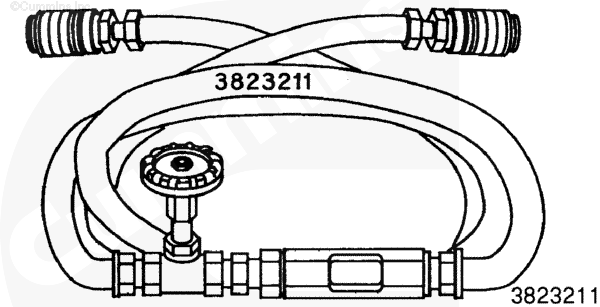

Tool Number
3823211 |
Coolant Sightglass
Used to troubleshoot the engine cooling system.
|
|
Tool Number
3824397 |
Anti-Seize Lubricant
Used to coat the o-ring on the coolant filter shutoff valve.
|
|

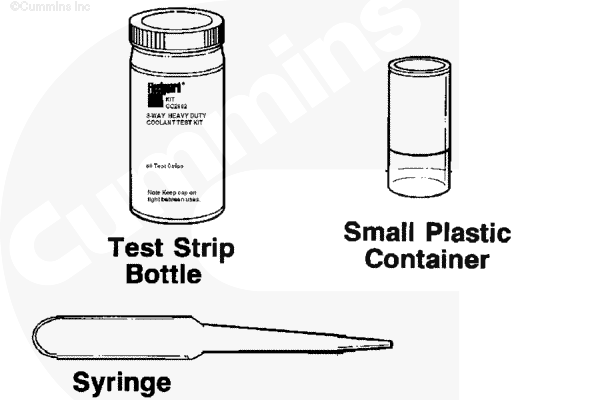

Tool Number
CC-2602 |
Cooling System Test Kit - Fleetguard®
Used to measure supplemental cooling additive (SCA) concentration.
|
|

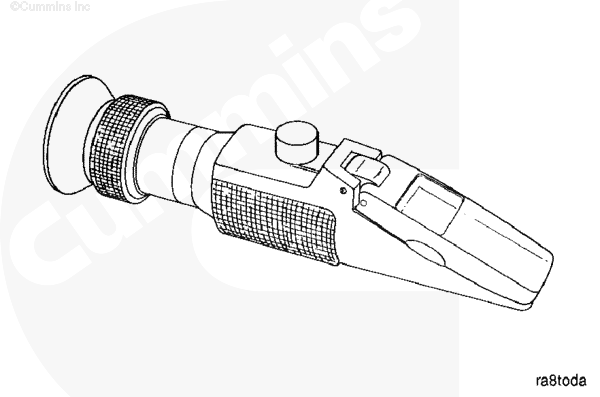

Tool Number
CC-2800 |
Refractometer
Used to measure glycol (antifreeze) concentration.
|
|
|
