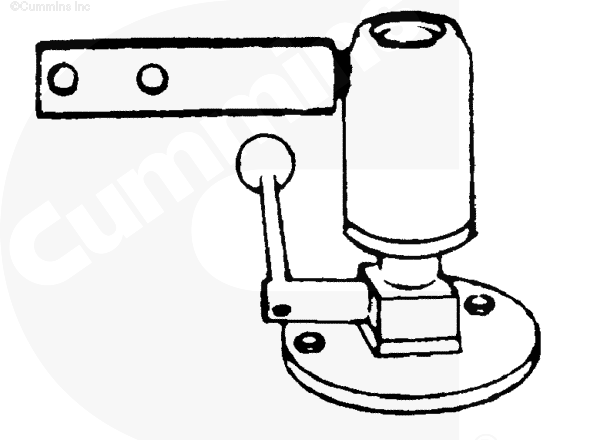

Tool Number
ST-302 |
Ball Joint Vise
Used to hold the air compressor for disassembly or assembly.
|
|
Tool Number
ST-647 |
Standard Puller
Used to pull the drive gear. Used with puller capscrews that have M8 x 1.25-6H threads.
|
|

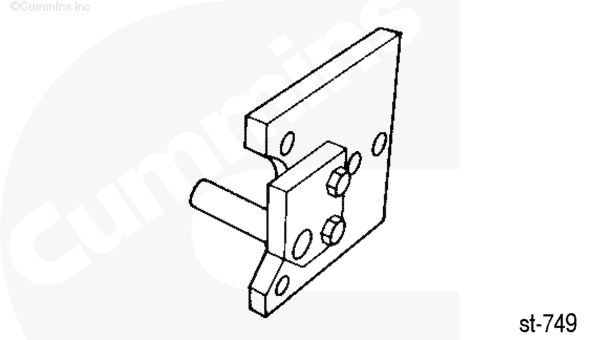

Tool Number
ST-749 or 3823597 |
Mounting Plate
Used to mount the air compressor to the vise.
|
|

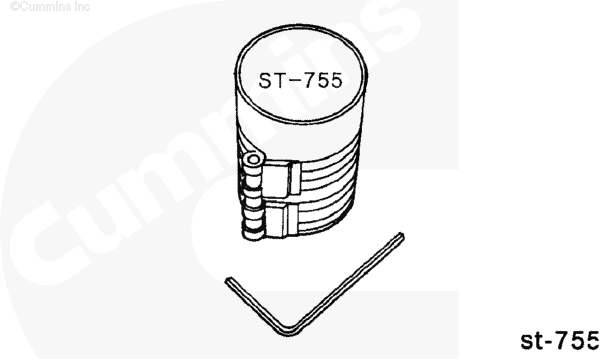

Tool Number
ST-755 |
Piston Ring Compressor
Used to compress all piston rings to permit easy installation of the piston/rod assemblies.
|
|

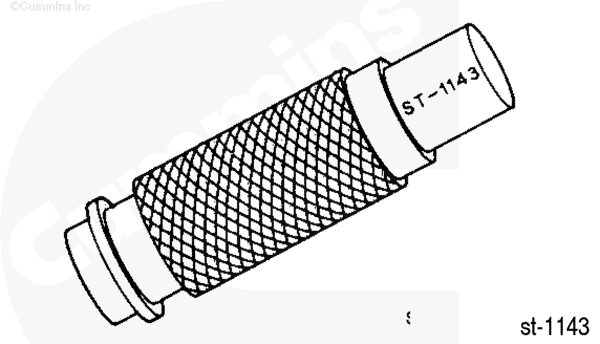

Tool Number
ST-1143 |
Air Compressor Bushing Mandrel
Used to remove and install the crankshaft bushing in the crankcase and support.
|
|

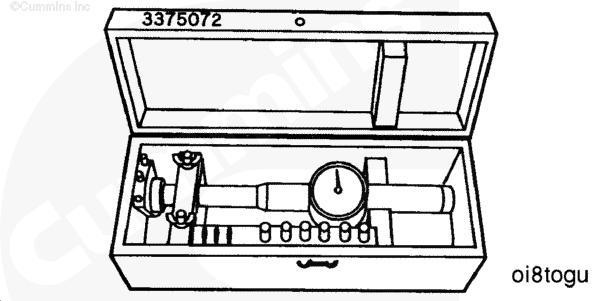

Tool Number
3375072 |
Dial Bore Gauge
Used to measure the cylinder bores.
|
|
Tool Number
3375182 |
Valve Spring Tester
Used to check the exhaust valve, intake valve, and unloader valve cap springs.
|
|
Tool Number
3376399 |
O-Ring Pick
Used to remove and install o-rings.
|
|
Tool Number
3376663 |
Coupling Puller
Used to remove the spline coupling hub.
|
|
Tool Number

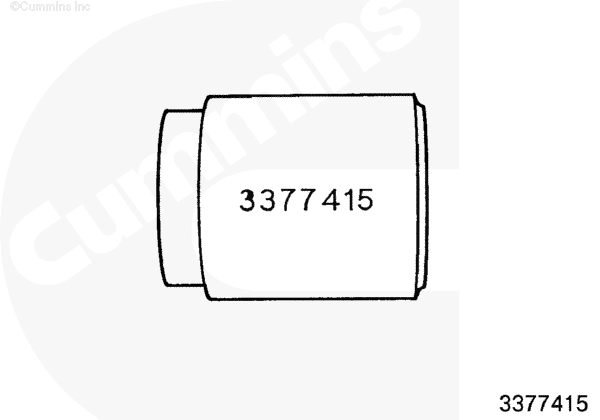

3377415 |
Air Compressor Seat Installation Tool
Used to install the exhaust valve seats.
|
|

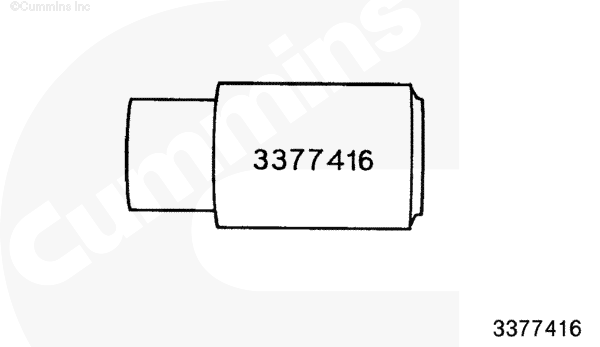

Tool Number
3377416 |
Air Compressor Seat Removal Tool
Used to remove the exhaust valve seats.
|
|

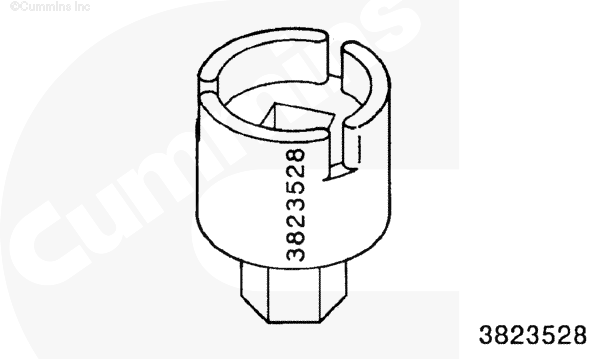

Tool Number
3823528 |
Air Compressor Seat Socket
Used to remove the exhaust valve seat and the inlet valve cage.
|
|

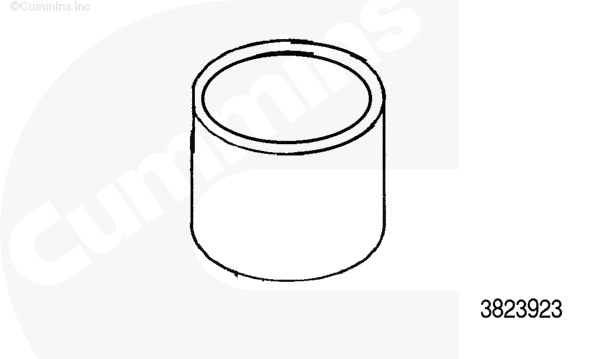

Tool Number
3823923 |
Spacer
Use with coupling puller, Part Number 3376663, to remove the hydraulic pump drive coupling.
|
|
|
