Vacuum Gauge

Used to check fuel filter or intake air restriction.

Pressure Gauge

Included in snap rail pressure gauge, Part Number 3375932. Used to measure fuel pressure.

Manometer

Used with tool, Part Number 3375150, for measuring blowby.

Lubricating Oil Sampling Filter

Used to monitor oil contamination.

Pressure Gauge

Used to measure intake manifold pressure.

Pressure Gauge (0-160 psi)

Used to measure lubricating oil pressure.

Pressure Gauge (0-300 psi)

Used to measure fuel pressure. Includes necessary hoses and hardware to attach to a fuel pump. Part Number ST-435-1 is the hose and Part Number ST-435-6 is the pressure gauge.

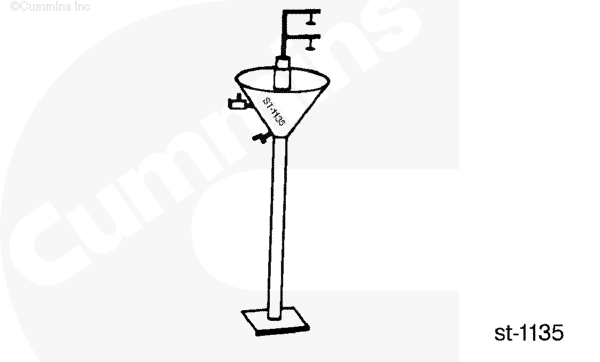

Fuel Measuring Device

Measure the rate of fuel consumption of a Cummins® diesel engine.

Digital Optical Tachometer

Used to measure engine speed (RPM).

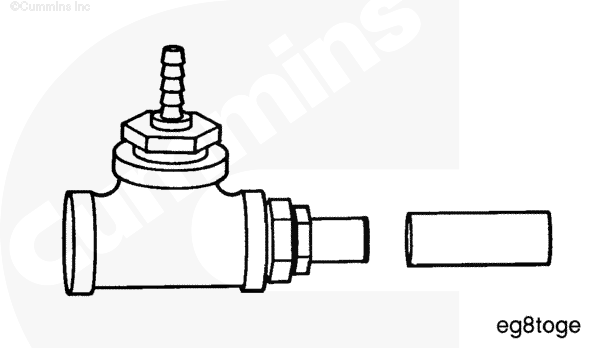

Blowby Check Tool

Used with manometer, Part Number ST-1111-3, to measure the engine crankcase pressure.

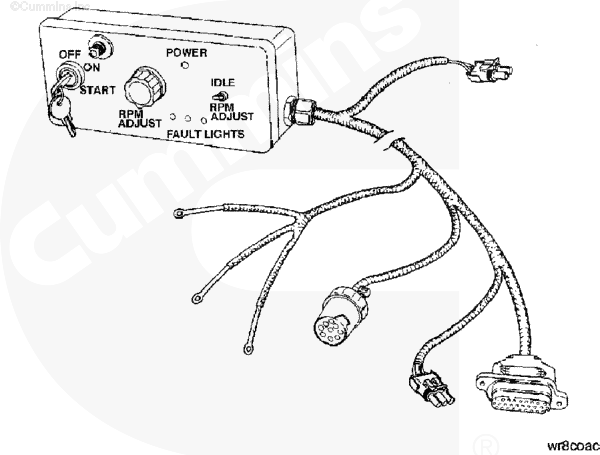

CELECT™ Engine Dyno Control

Used on an engine dyno to control the CELECT™ engine and in the troubleshooting OEM wiring harness and throttle pedal malfunctions.

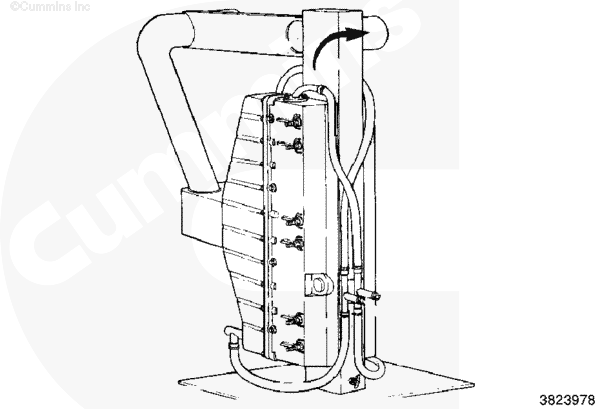

Dyno-Room Charge-Air Cooler

Used to cool intake air when an air to air engine is used on a engine dyno.

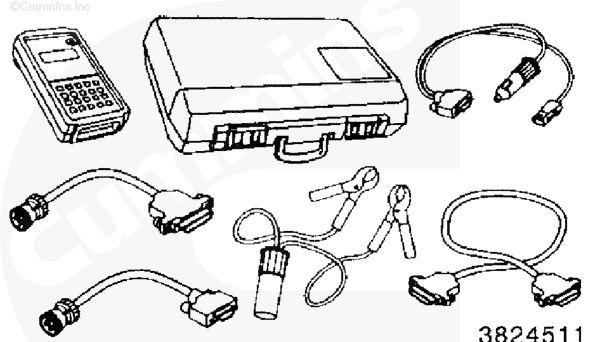

Echek™ Tool Kit

Used to troubleshoot and adjust CELECT™ or CELECT™ Plus system. Kit includes Echek™ tool and all necessary power cords and cables. Requires the correct cartridge for application being used.

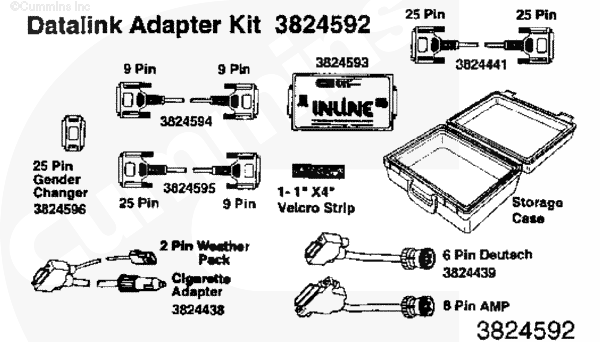

Data Link Adapter Kit

Inline adapter and associated cables are used to connect a computer to an engine data link.

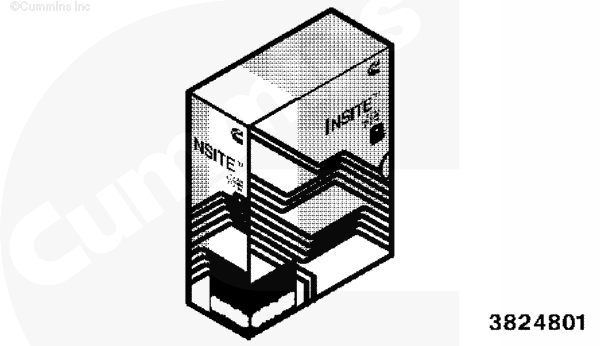

INSITE™ Electronic Service Tool Software Kit

This kit contains INSITE™ electronic service tool Software Kit, Part Number 3885790, for use with CELECT™ engines, and INSITE™ electronic service tool Software Kit, Part Number 3885810, for use with CELECT™ Plus engines. Each software kit can also be ordered separately. The kits are used to troubleshoot, program, and adjust the electronic system.
