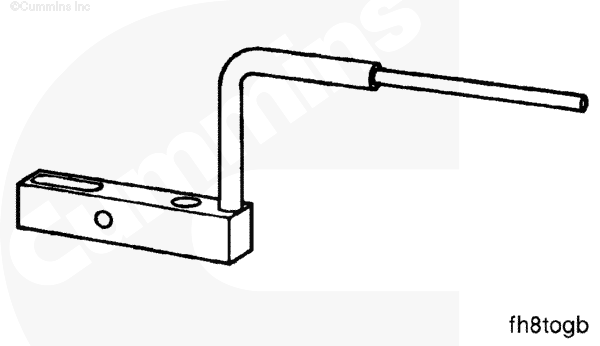

Dowel Pin Extractor

Used to extract dowel pins.

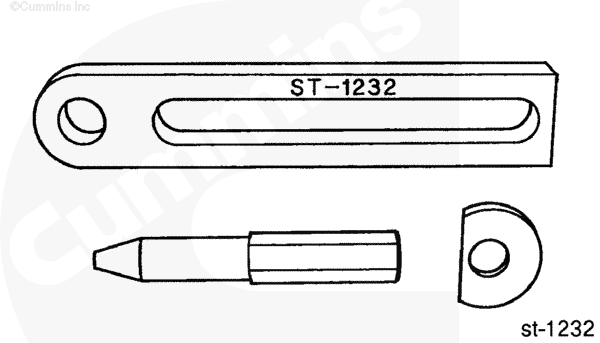

Drill Ream Fixture

Used to accurately drill and ream holes in the cylinder block and flywheel housing for the installation of the standard oversized dowel pins. Used in conjunction with Part Numbers ST-1234 through ST-1238, and Part Number 3376495. Includes plate, Part Number ST-1232-1.

Dial Gauge Attachment

Used to check the bore and face of the flywheel and flywheel housing relative to the center line of the crankshaft.

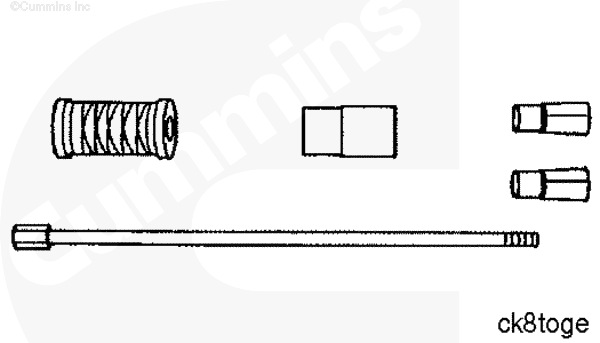

Crack Detection Kit

Used to check or inspect components for cracks.

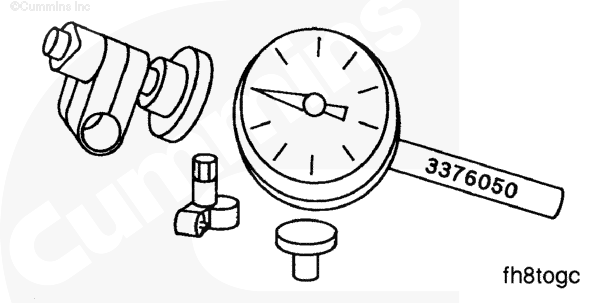

Dial Indicator and Sleeve Assembly

Used with dial indicator attachment, Part Number ST-1325, for checking the bore and face of the flywheel and flywheel housing.
