Flow Diagram

SMALL | MEDIUM | LARGE

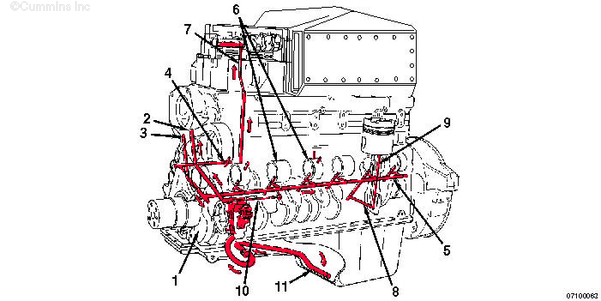

Lubricating Oil System

1. Lubricating oil pump
2. To lubricating oil cooler
3. From lubricating oil cooler
4. Piston cooling nozzle
5. Main oil rifle
6. Camshaft bushings
7. To overhead
8. Main bearing
9. Connecting rod drilling
10. Rifle pressure signal line
11. Suction tube.

SMALL | MEDIUM | LARGE

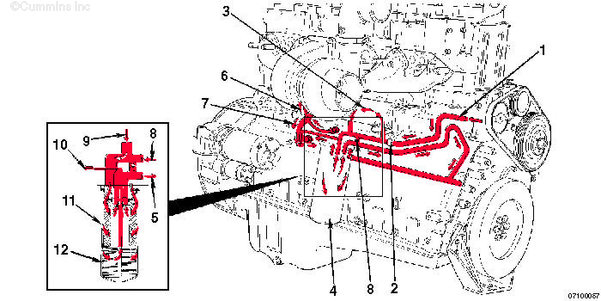

Lubricating Oil System

1. From lubricating oil pump
2. Lubricating oil cooler thermostat
3. Lubricating oil cooler
4. Combination full-flow/bypass lubricating oil filter
5. To main rifle
6. Turbocharger lubricating oil supply
7. Turbocharger Drain
8. Lubricating oil filter bypass valve
9. From lubricating oil cooler
10. Bypass filter oil to sump
11. Full-flow filtration
12. Bypass filtration.

SMALL | MEDIUM | LARGE

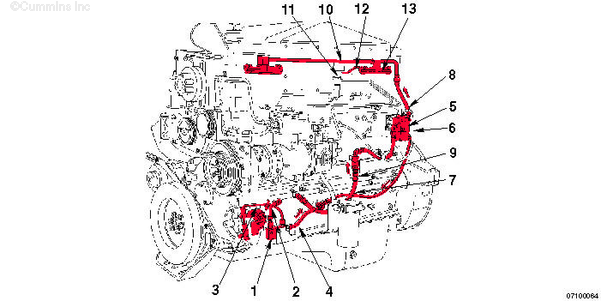

Viscosity Sensor and STC Control Valve

1. Viscosity sensor
2. Rifle pressure supply line
3. Regulator signal line
4. Lubricating oil supply line
5. STC valve
6. Fuel rail pressure line
7. Lubricating oil supply line
8. Lubricating oil to tappets
9. Check valve
10. External oil manifold
11. STC injector tapped (inside injector)
12. Internal lubricating oil tube
13. External lubricating oil manifold connector.

SMALL | MEDIUM | LARGE

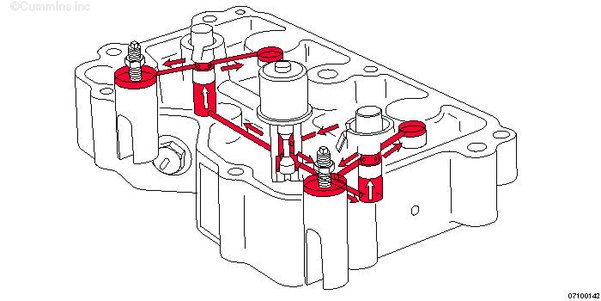

Engine Brake Oil
