Flow Diagram

SMALL | MEDIUM | LARGE

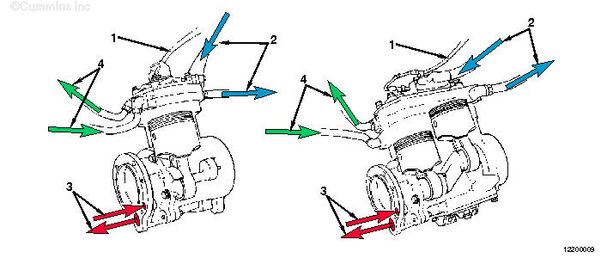

Air Compressor

1. Air governor signal
2. Air
3. Lubricant
4. Coolant.

SMALL | MEDIUM | LARGE

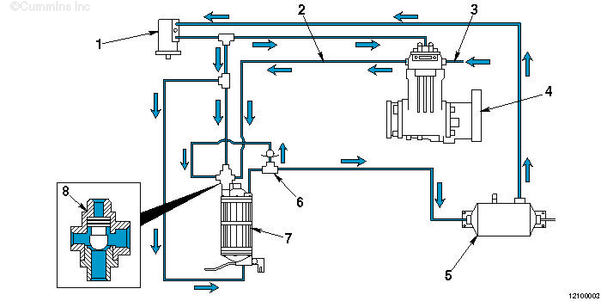

Holset E-Type System with Air Dryer

1. Governor
2. Discharge
3. Intake
4. Air compressor
5. Reservoir (wet tank)
6. Check valve
7. Air dryer
8. Econ valve.

SMALL | MEDIUM | LARGE

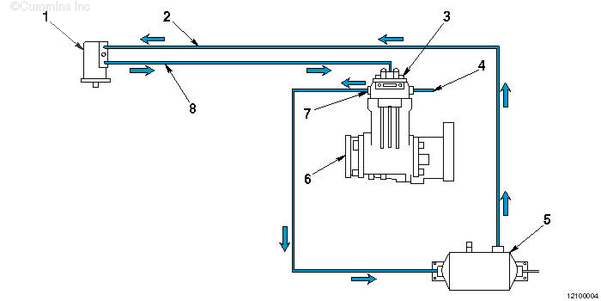

Holset E-Type System without Air Dryer

1. Governor
2. From reservoir
3. E-type unloader
4. Intake
5. Reservoir (wet tank)
6. Compressor
7. Discharge
8. From unloader.
